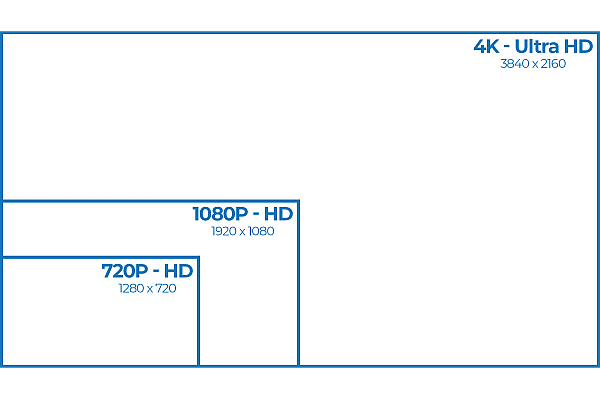

Ghid practic pentru rezolutii CCTV

Term Pixels (W x H) Notes
QCIF 176 x 120 Quarter CIF (half the height and width as CIF)
CIF 352 x 240
2CIF 704 x 240 2 times CIF width
4CIF 704 x 480 2 times CIF width and 2 times CIF height
D1 720 x 480 aka "Full D1"
720p HD 1280 x 720 720p High Definition aka "HD-SDI"
960p HD 1280 x 960 960p High Definition - a Sony specific HD standard
1.3 MP 1280 x 1024 aka "1 Megapixel" or "1MP"
2 MP 1600 x 1200 2 Megapixel
1080p HD 1920 x 1080 1080p High Definition
3 MP 2048 x 1536 3 Megapixel
4 MP 2688 x 1520 4 Megapixel
5 MP 2592 x 1944 5 Megapixel
6 MP 3072 x 2048 6 Megapixel
8 MP / 4K (Coax) 3840 x 2160 8 Megapixel
12 MP / 4K (IP) 4000 x 3000 12 Megapixel
